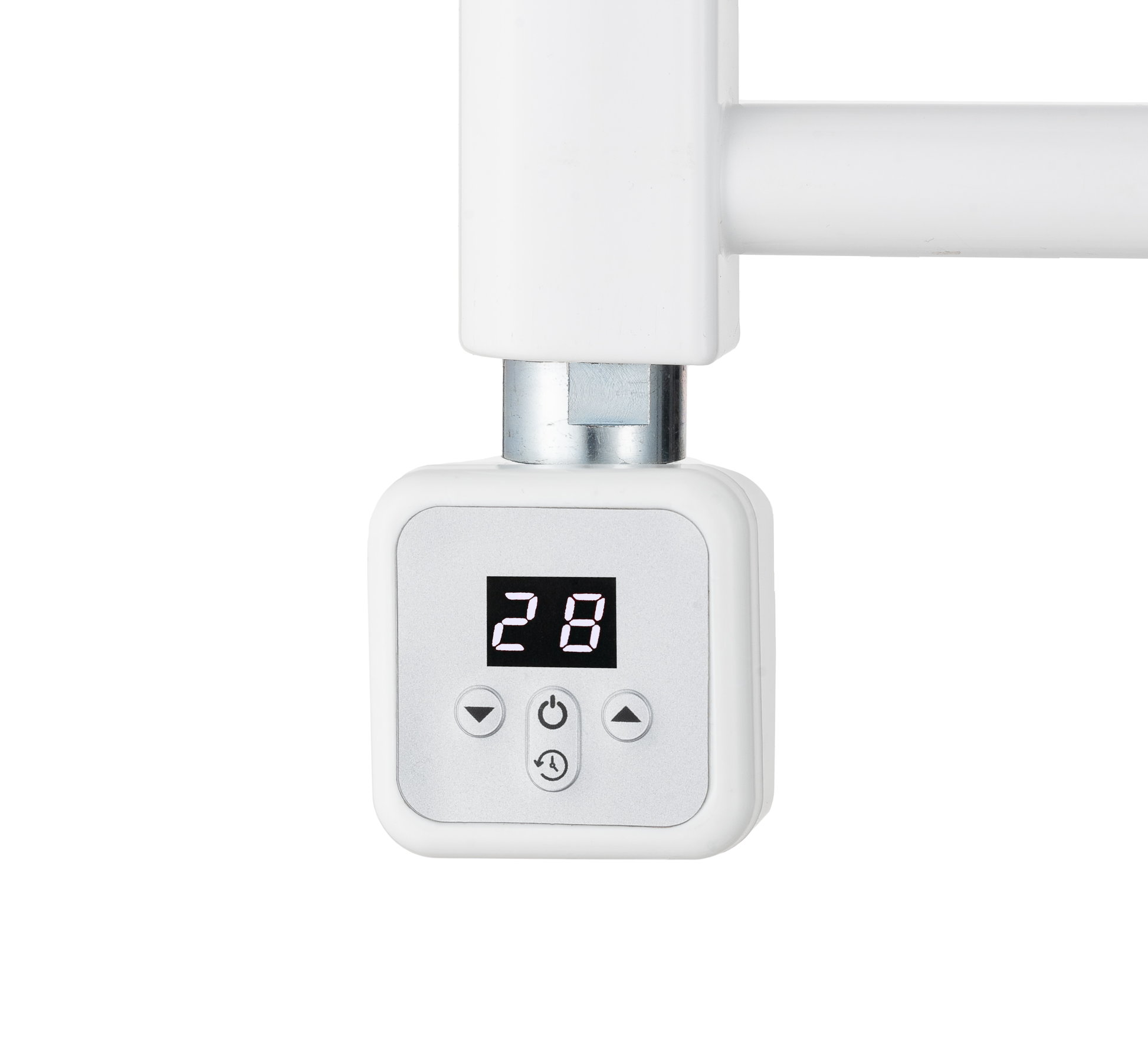

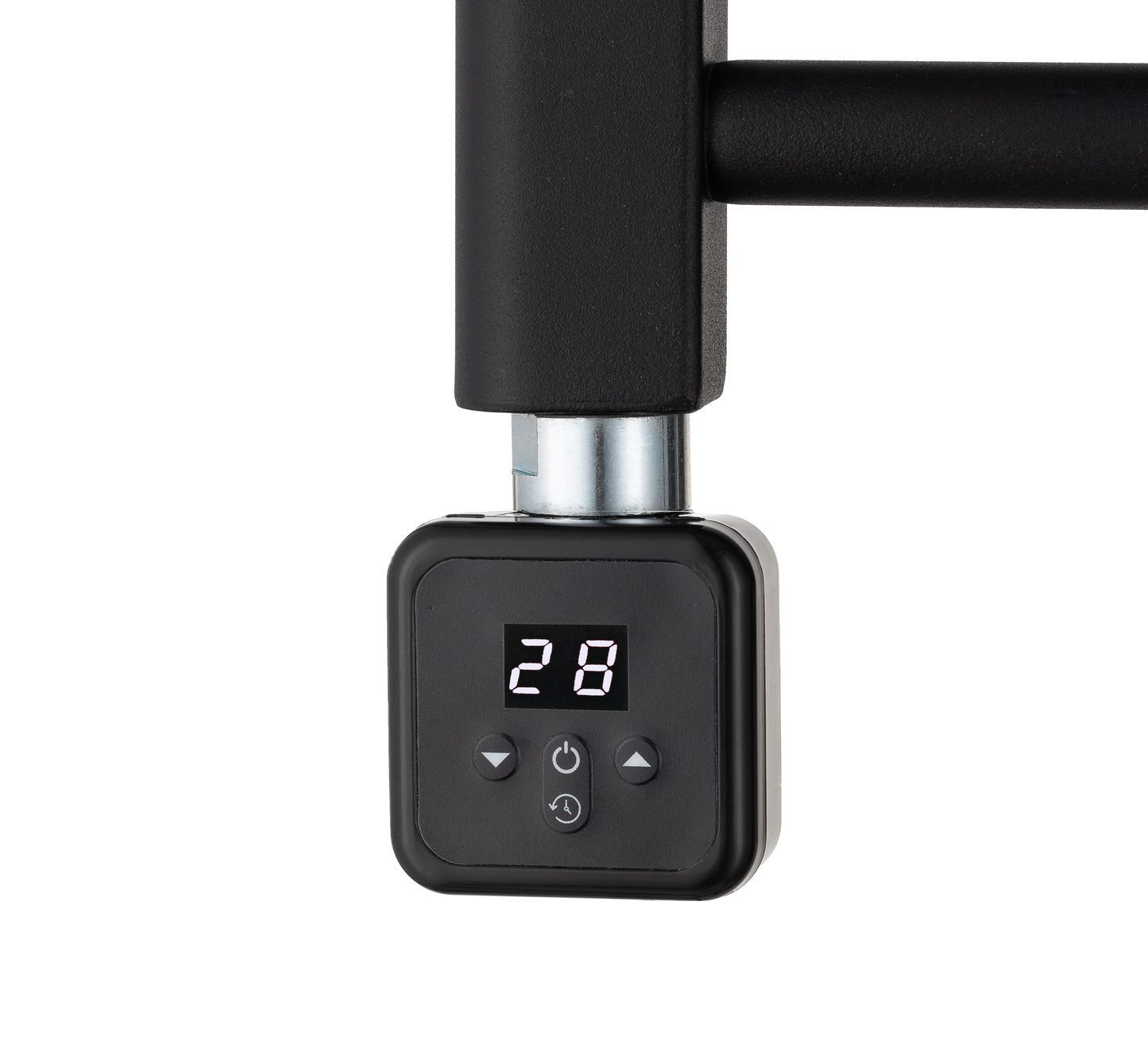

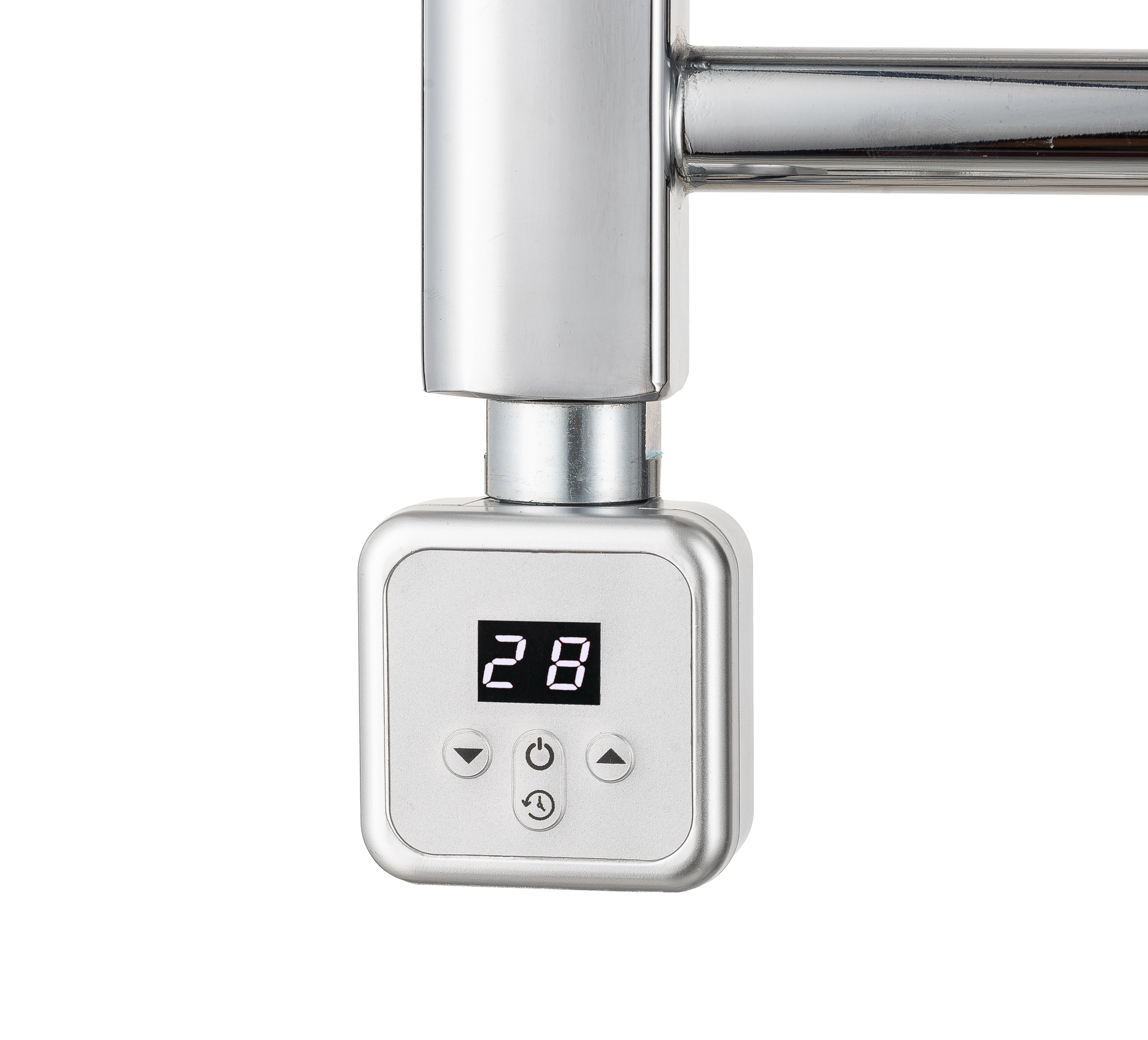

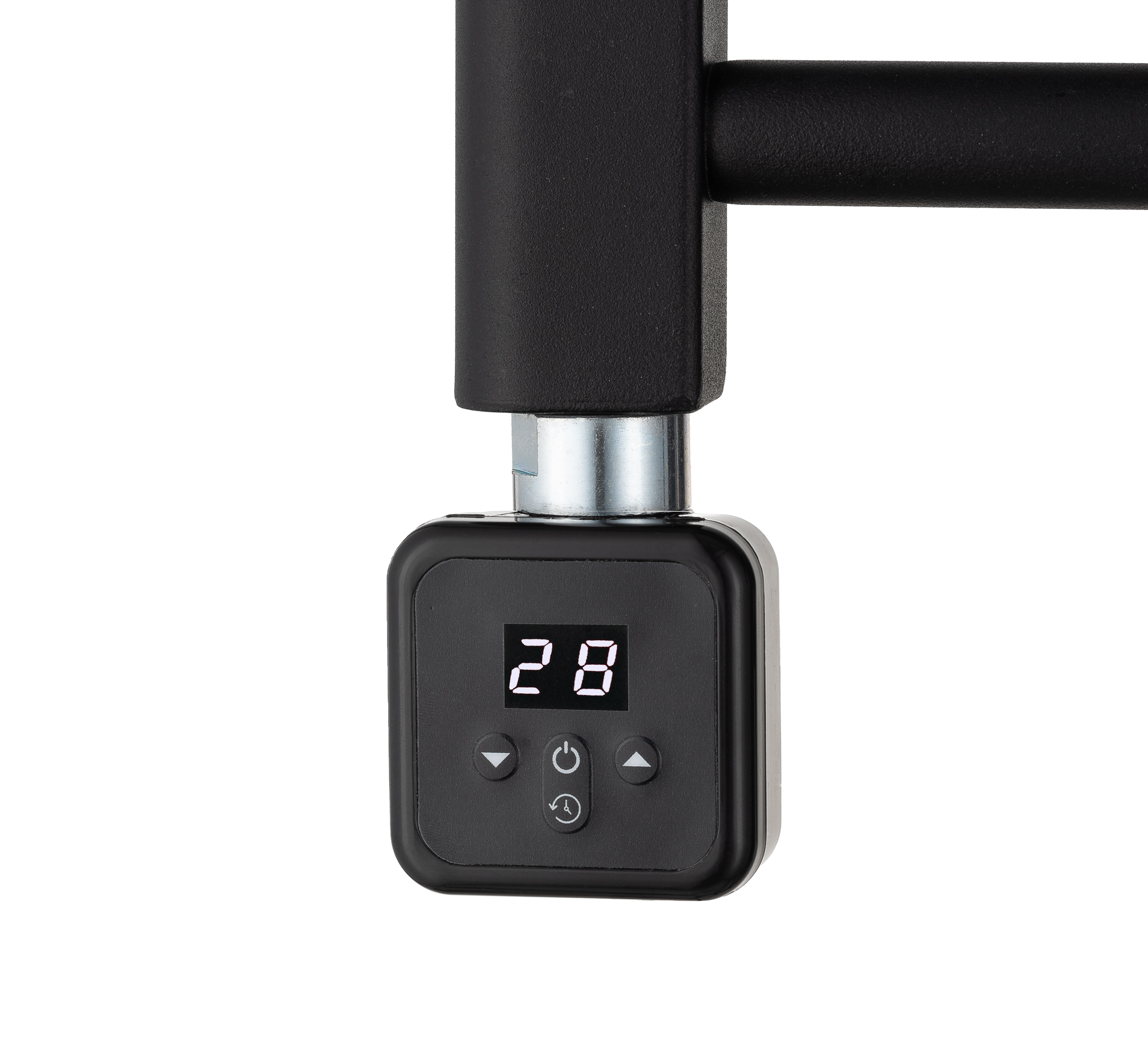

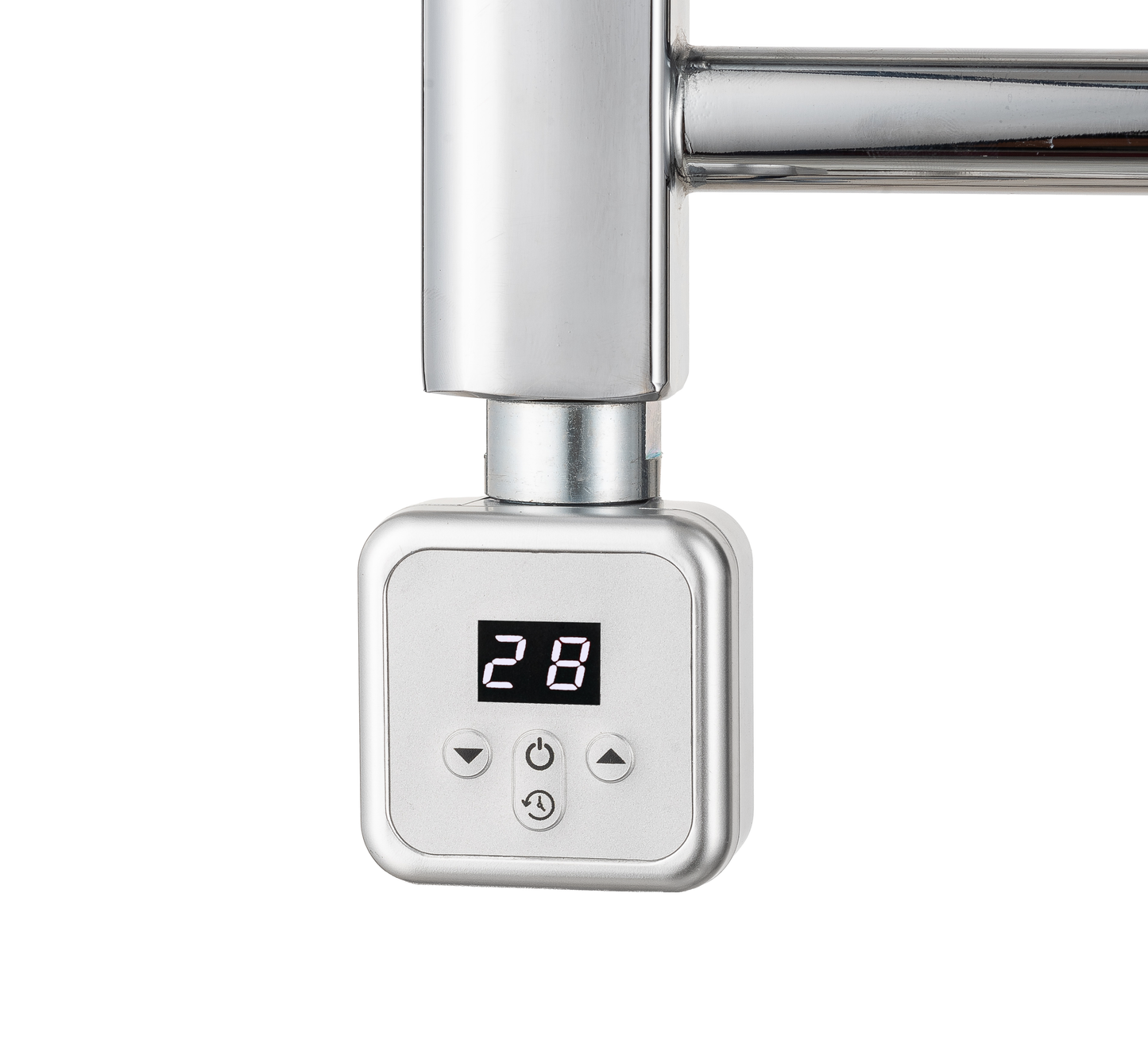

Digital SQ Thermostatic Heating Element for Towel Radiators

Bring smart, precise heating to your towel radiator with the Digital SQ Thermostatic Heating Element. With a modern square profile, dual‑fuel capability, and advanced control options, this element suits contemporary bathrooms where performance, design, and safety matter.

This element senses **room temperature** (not internal radiator fluid) to deliver optimal comfort. It’s compatible with external timer systems, and has a built‑in booster timer (1–5 hours variable setting) so you can pre‑warm as needed.

Key Features

• 🟦 Square Design: Matches modern towel rail profiles with a flush, discrete controller.
• 🌡 Digital Thermostat (Room Sensing): Measures ambient temperature to manage heating, not simply radiator fluid temp.
• ⏱ Booster Timer (1–5 hrs): Built‑in timer allows you to activate heat for a defined period without reprogramming.
• 🔌 External Timer Compatibility: Fully compatible with external time switches or smart control systems.
• ☀️ Dual Fuel Support: Can be added to new or existing towel radiators via a T-piece, allowing summer use independent of central heating.
• 💧 IPX6 Splash Rating: Safe for bathroom zones 2 & 3 (installation subject to local regs).
• ⚡ Multiple Wattages Available: Options: 150W, 300W, 600W — suited for small to large rails.

Safety & Usage Notes

• Do **not** install this element horizontally or with the controller turned downward. Maintain vertical orientation to ensure correct fluid movement and sensor operation.
• Electrical connection **must** be performed by a qualified, approved electrician in compliance with UK wiring regulations.
• Always confirm compatibility with your radiator (½″ BSP thread) before installation.
• Use only in accordance with local building and bathroom zone regulations.

Which Wattage Should You Choose?

• 150W: Suitable for small towel rails and compact bathrooms.
• 300W: Ideal for standard medium rails.
• 600W: Recommended for large towel rails and rooms needing more heat output.

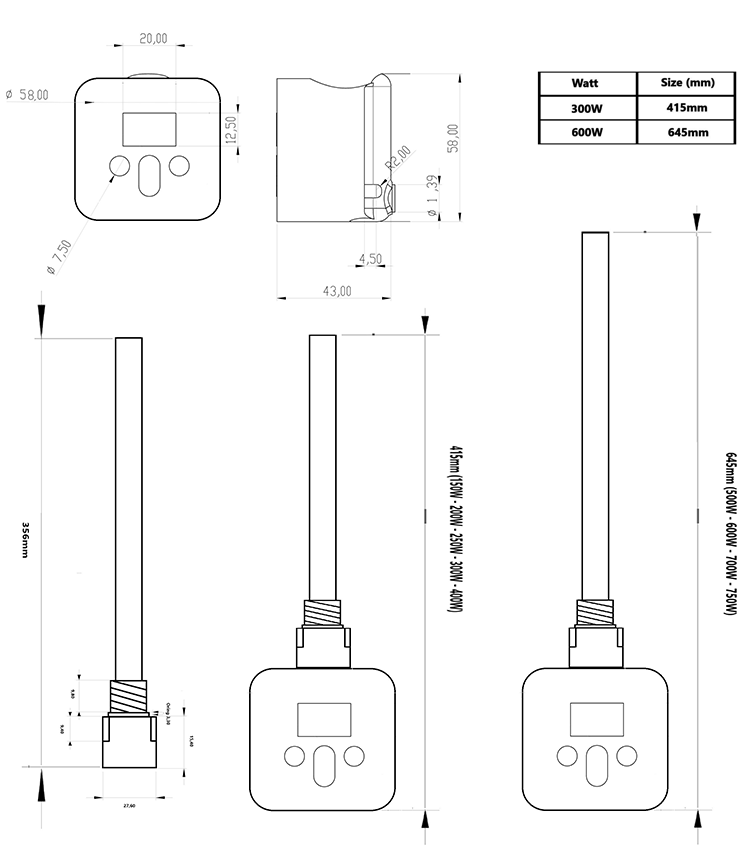

Technical Specifications

All measurements are approximate. Images are for illustrative purposes only. Always refer to the user manual before installation.
