Digital Time Control Unit for for Electric Towel Rails

Enjoy the comfort of perfectly warmed towels ready exactly when you need them. Compatible with Single Heat and ER-Touch Thermostatic systems, this intelligent timer combines convenience with energy savings. The weekly programming feature ensures your towels are heated at precisely the right time, every single day.

Main Features:

• Rapid Heat Mode: Express 1-2 hour heating option for chilly mornings.
• Seasonal Automation: Smart system automatically adjusts for daylight saving time changes.
• Safety Standards: CE and UKCA certified with double-pole isolation and 13A fuse protection.
• Wide Compatibility: Works with resistive loads up to 3kW and various lighting systems.
• Technical Details: Compact 85 x 85 x 24.5 design with comprehensive specifications.

Warning: Not compatible with discharge-type lighting.

Technical Specifications

• Digital display programmable fused socket
• 1-2 hour turbo heating function
• Summer/winter automatic clock adjustment
• CE and UKCA approved
• 7-day program memory
• Patress box mounting system
• Double-pole isolator
• Requires 25mm depth mounting box
• Integrated mains switching
• 200-hour backup power capacity

MUST BE INSTALLED BY QUALIFIED ELECTRICIAN!

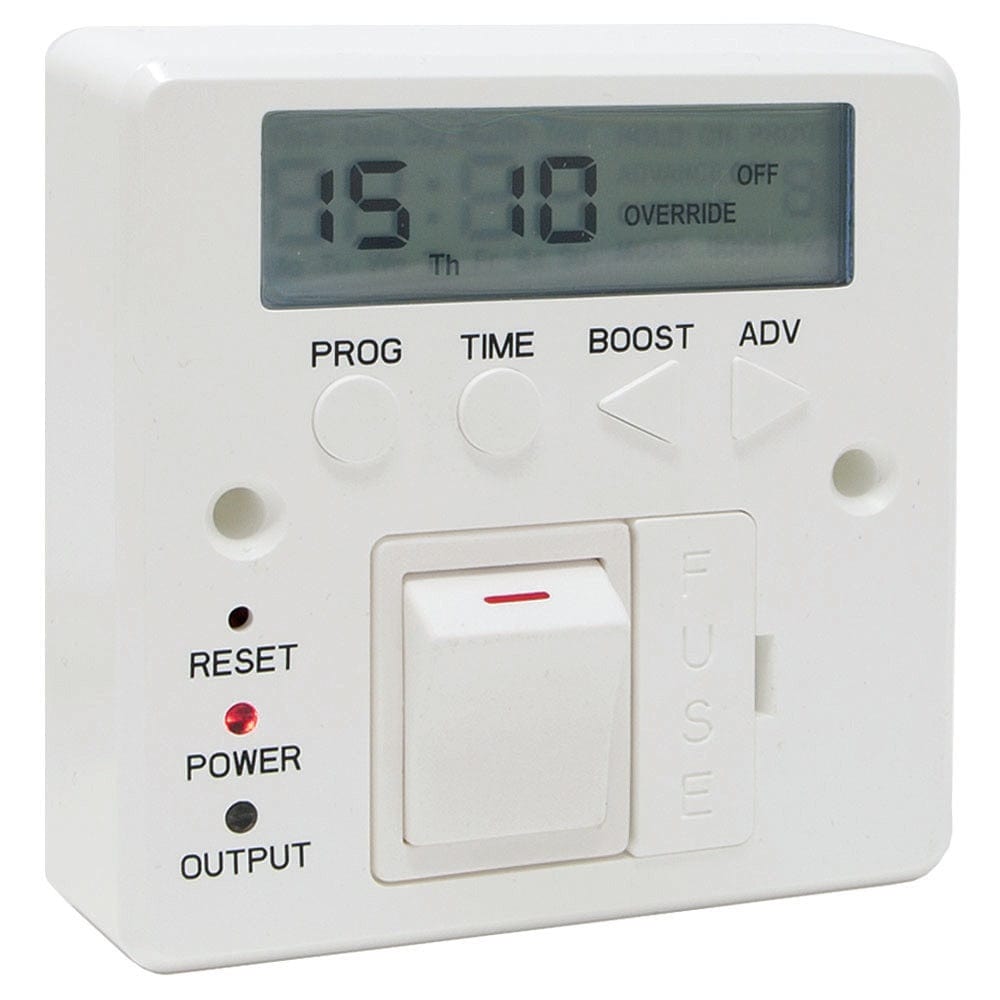

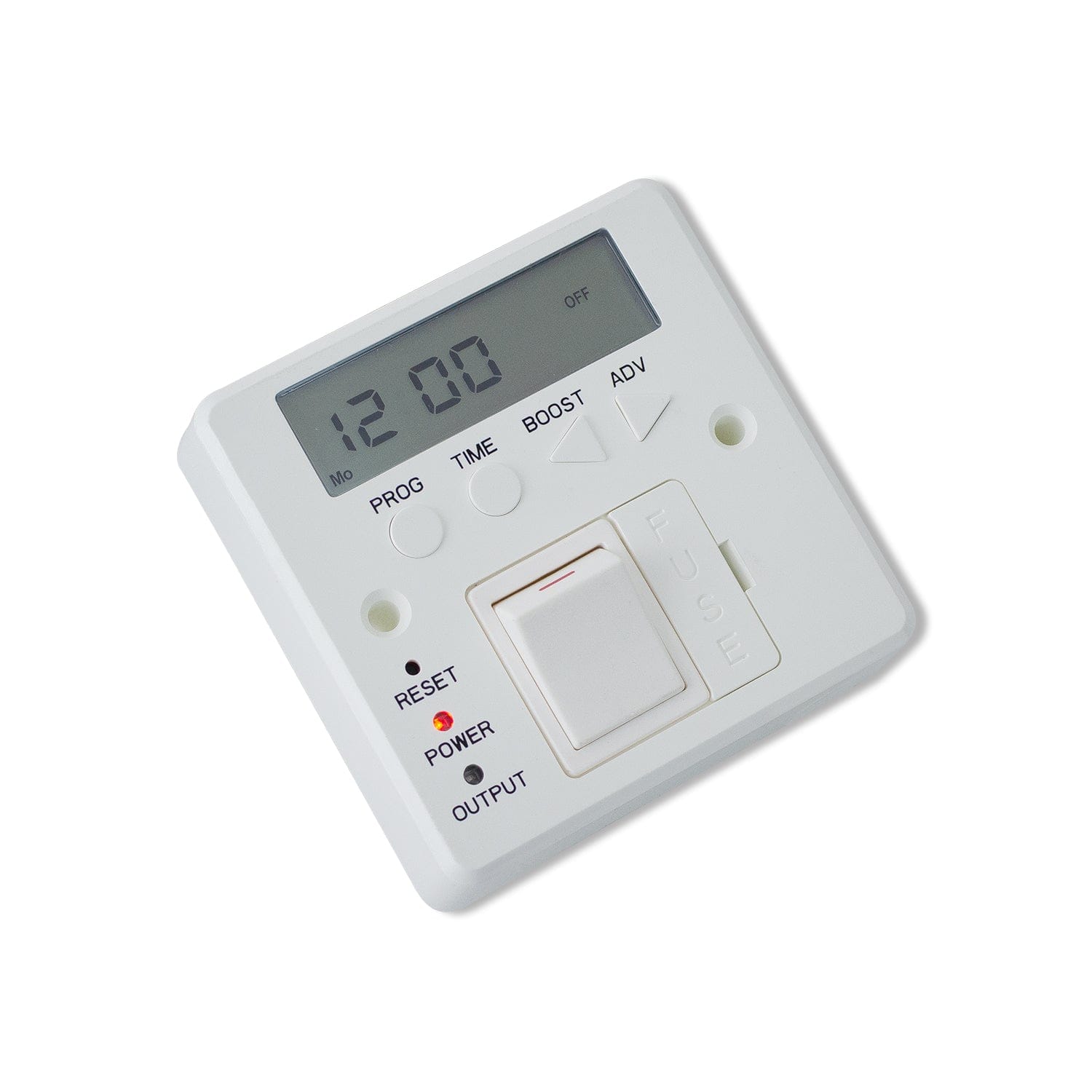

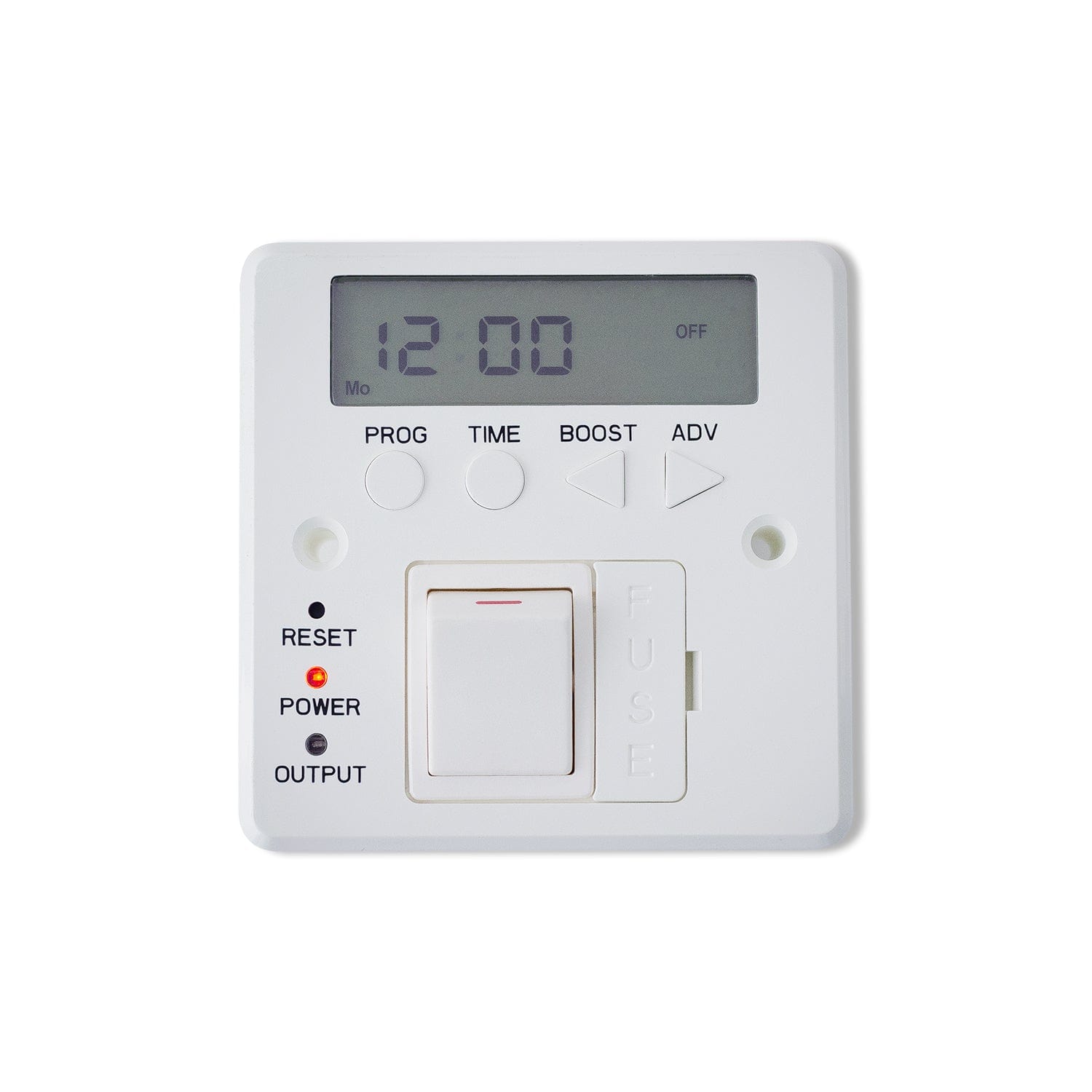

The CB-WCONT-TMR is a digital timer developed specifically for electric towel warmers. Suitable for patress-type installation, the unit controls a 13-amp mains-connected switch using 7-day, 24-hour programming logic. An internal rechargeable battery protects your program during power outages.

The output can be disconnected via an integrated double-pole isolation switch; the load is protected by a replaceable BS1362 standard 13 Amp fuse housed in a removable caddy.

We also offer a WiFi Connected Smart Timer model with integrated fused spur.

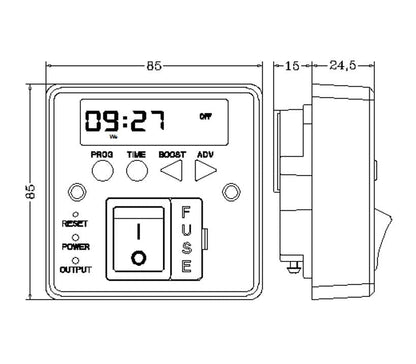

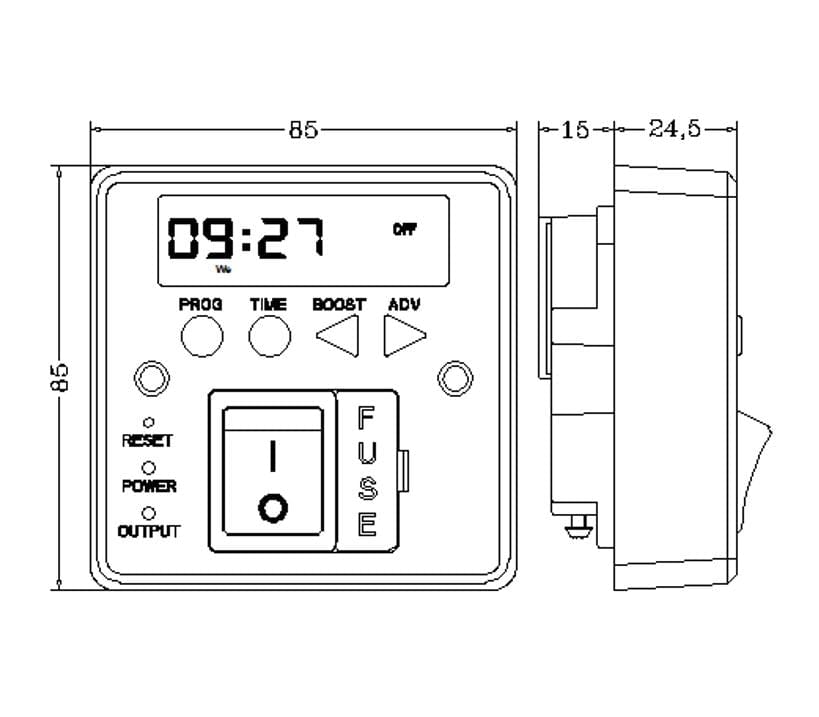

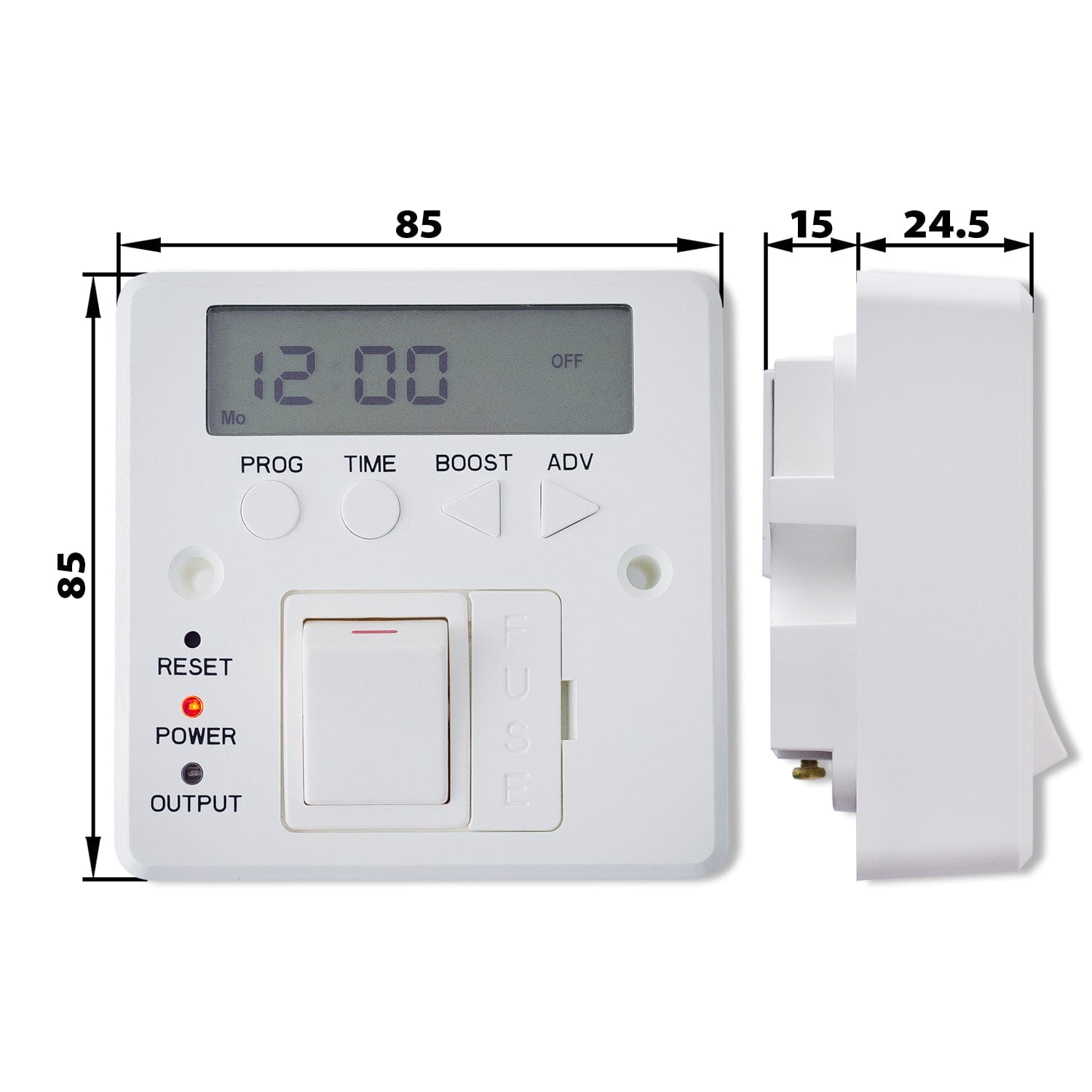

• Dimensions: 85 x 85 x 24.5 mm

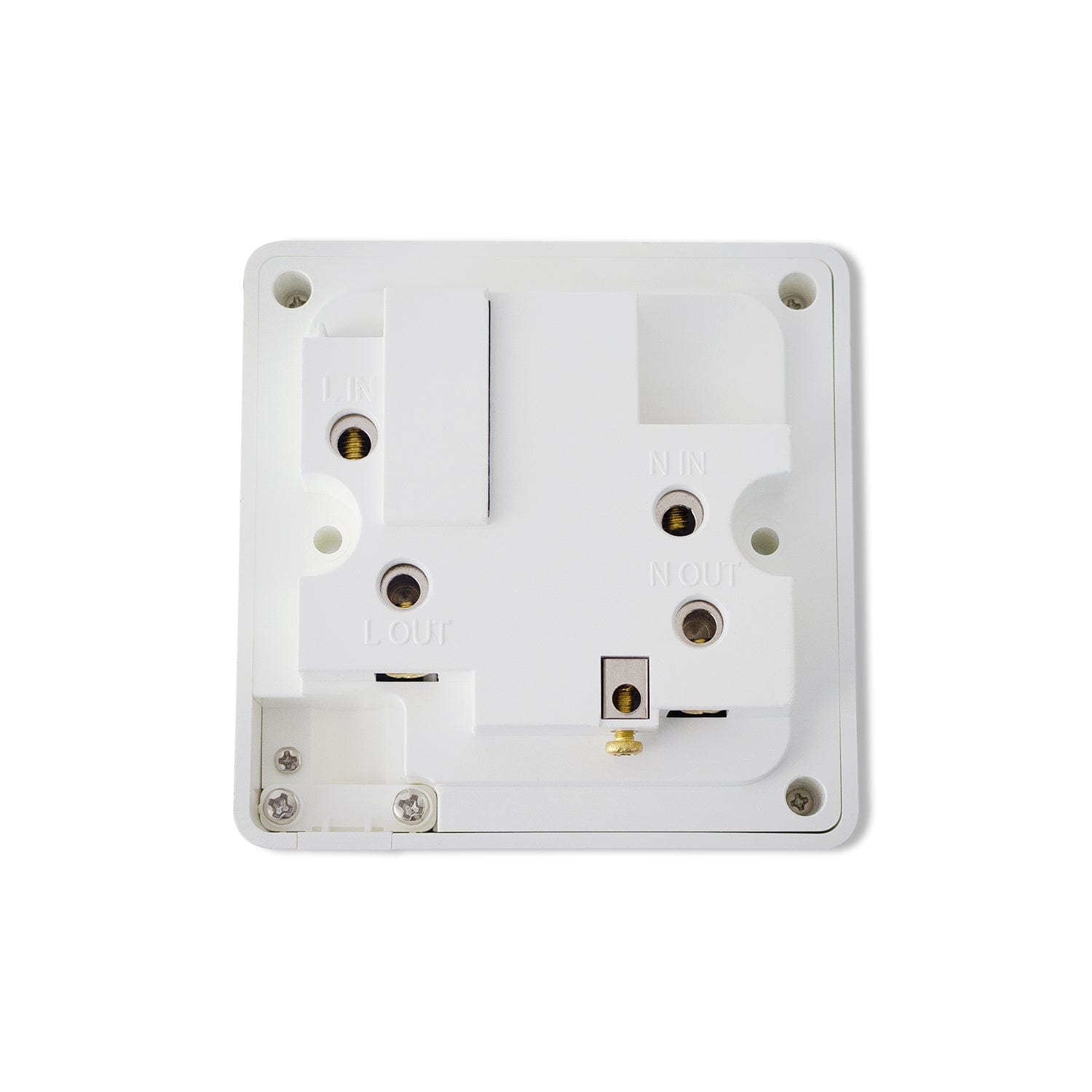

• Connections: 4 screw cable terminals
• Weight: 150 grams
• Power consumption: 1VA at 230V 50Hz
• Resistive load capacity: 13 Amps
• Inductive load: 2 Amps (cos ø 0.6)
• Minimum load: 100mA at 20V AC/DC
• Battery life: 200 hours
• Operating temperature: -20°C to +55°C
• Quartz accuracy: (typically ±2.5 seconds per day)
• Minimum timing period: 1 minute
• Program capacity: 7 Days full, 5 Days (weekdays only), 2 Days (weekends only), individual daily programs. (4 ON/OFF timings per day)
• Manual override: Available

Compatible Systems:

• Resistive loads (maximum 3kW) - such as immersion heaters
• Incandescent / Halogen Lighting (max 700W)
• Fluorescent Lighting (max 500W)
• Compact Fluorescent CFL (max 80W)
• LED Lighting (max 150W)
• Not compatible with discharge-type lighting
